»Description:
The 72 series is an industrial coupling
suitable for compressed air, gases, oils
and liquids. Interchangeable with couplings
produced according to ISO 7241
series B. Double sealing by spring-operated
valves. A proven ball lock mechanism
guarantees a perfect connection

»Materials:
Available in galvanised steel, stainless
steel 303 and brass. As standard with
FPM seals. Other materials including
NBR and EPDM are available on request.
»Sizes:
From 1/4” to 1”.
» Connections:
Available as standard with BSP female
thread. Other threads available on
request.
» Working pressure:

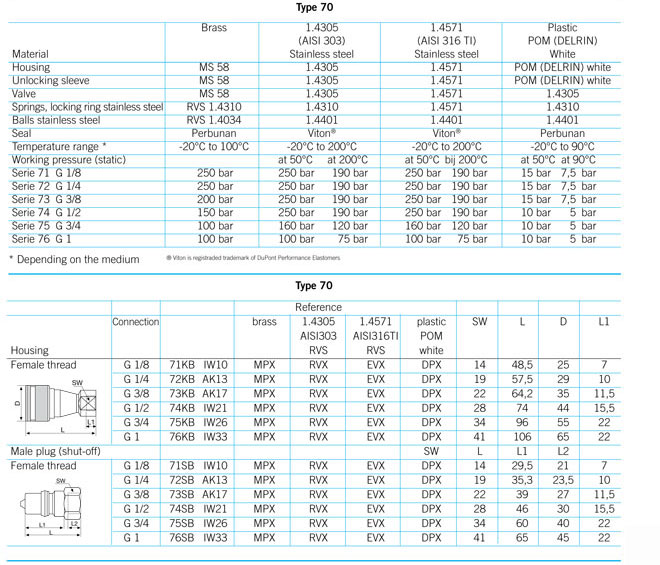

Depending on material and diameter,
see the table. The values mentioned are
measured at a temperature of 20°C with
static load.
» Temperature range :
40°C to +93°C (with FPM seals)
» Special designs :
sleeve lock design. This design prevents
inadvertent disconnection.
» Accessories :
Dust cap and dust plug.
